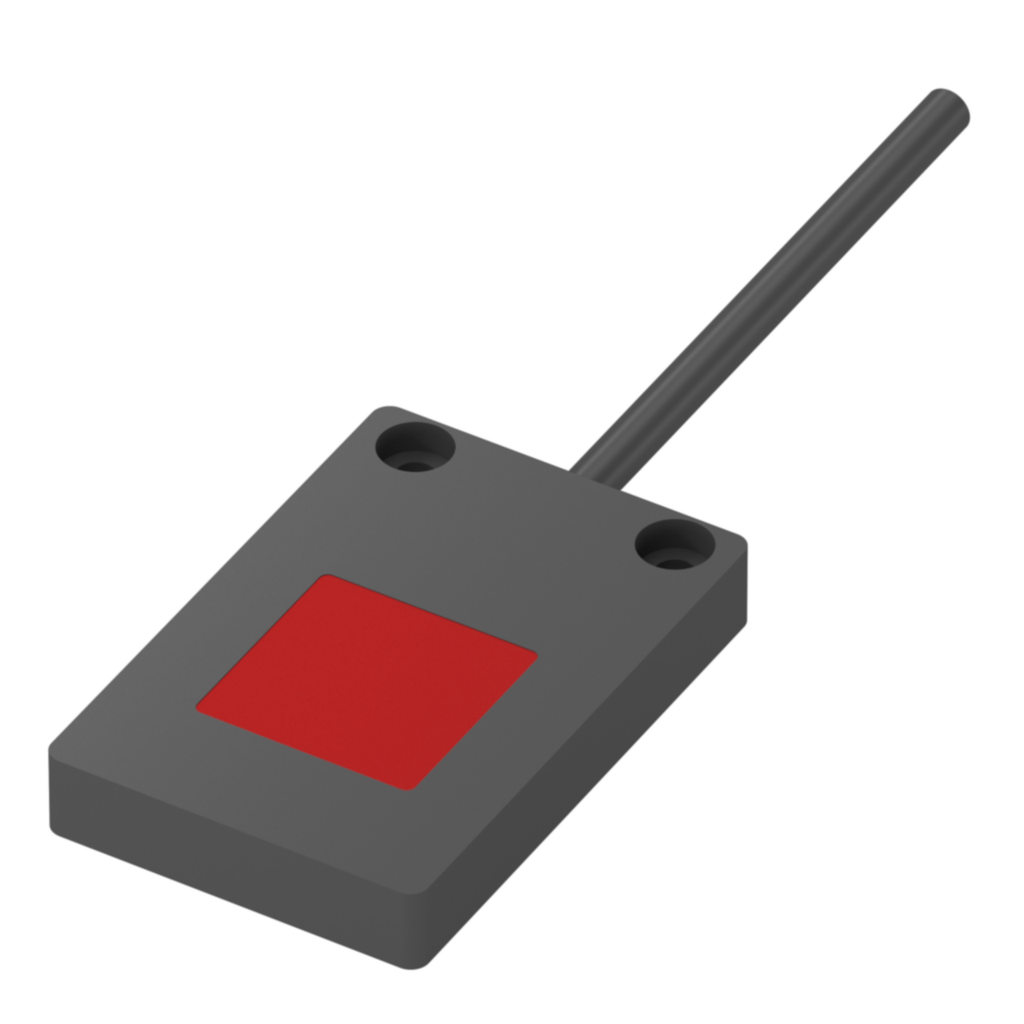

[BAE000E] BALLUFF BAE LX-VS-HR025 (new)
Iluminación de visión, Conexión = Cable con conector, M12x1-Conector, 4-polos, 0.3 m, Versión = Iluminación de fondo, Dimensiones = 43 x 9.5 x 64.5 mm, Tensión asignada de servicio Ue CC = 24 V, Consumo de corriente máx. = 208 mA, Operating Mode = Normal (continuous operation), Material = aluminio anodizado, negro Vidrio PMMA, Superficie de iluminación = 25 x 25 mm, Tipo de luz = LED de luz roja, Longitud de onda = 617 nm, Iluminancia (0,1 m) = 350 lux, Ángulo de irradiación = 40 ° x 40 °, Temperatura ambiente = -10...55 °C, Homologación/conformidad = CE, UKCA, WEEE, Grado de protección = IP54
| Brand/Manufacturer: | BALLUFF |
| Status: |
Active
|
MONTERREY
0.0
SALTILLO
0.0
0.0 available
Technical Information
Vision illumination, Connection = Cable with connector, M12x1-Connector, 4-pole, 0.3 m, Version = Backlighting, Dimensions = 43 x 9.5 x 64.5 mm, Assigned operating voltage EU DC = 24 V, Max. current consumption = 208 mA, Operating Mode = Normal (continuous operation), Material = anodized aluminum, black PMMA glass, Lighting surface = 25 x 25 mm, Type of light = Red light LED, Wavelength = 617 nm, Illuminance (0.1 m) = 350 lux, Irradiance angle = 40 ° x 40 °, Ambient temperature = -10...55 °C, Approval/conformity = CE, UKCA, WEEE, Degree of protection = IP54
