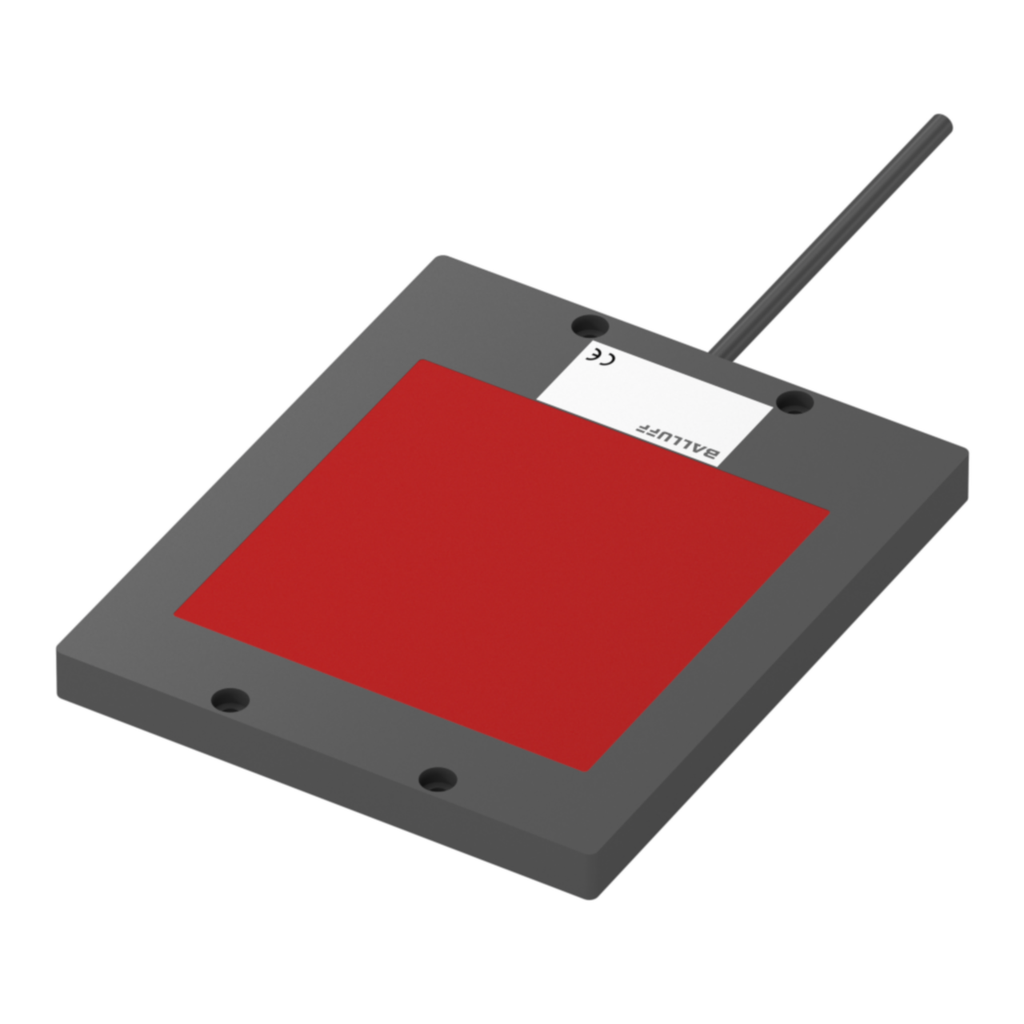

[BAE000H] BALLUFF BAE LX-VS-HR100 (new)
Iluminación de visión, Conexión = Cable con conector, M12x1-Conector, 4-polos, 0.3 m, Versión = Iluminación de fondo, Dimensiones = 130 x 9.5 x 155 mm, Tensión asignada de servicio Ue CC = 24 V, Consumo de corriente máx. = 416 mA, Operating Mode = Normal (continuous operation), Entradas digitales = Disparador, Material = aluminio anodizado, negro Vidrio PMMA, Superficie de iluminación = 100 x 100 mm, Tipo de luz = LED de luz roja, Longitud de onda = 617 nm, Iluminancia (0,1 m) = 3700 lux, Ángulo de irradiación = 55° x 55°, Temperatura ambiente = -10...55 °C, Homologación/conformidad = CE, UKCA, WEEE, Grado de protección = IP54
| Brand/Manufacturer: | BALLUFF |
| Status: |
Active
|
MONTERREY
0.0
SALTILLO
0.0
0.0 available
Technical Information
Vision illumination, Connection = Cable with connector, M12x1-Connector, 4-pole, 0.3 m, Version = Backlighting, Dimensions = 130 x 9.5 x 155 mm, Assigned operating voltage Eu DC = 24 V, Max. current consumption = 416 mA, Operating Mode = Normal (continuous operation), Digital inputs = Trigger, Material = anodized aluminum, black PMMA glass, Illumination surface = 100 x 100 mm, Light type = red light LED, Wavelength = 617 nm, Illuminance (0.1 m) = 3700 lux, Irradiation angle = 55° x 55°, Ambient temperature = -10...55 °C, Approval/conformity = CE, UKCA, WEEE, Degree of protection = IP54
