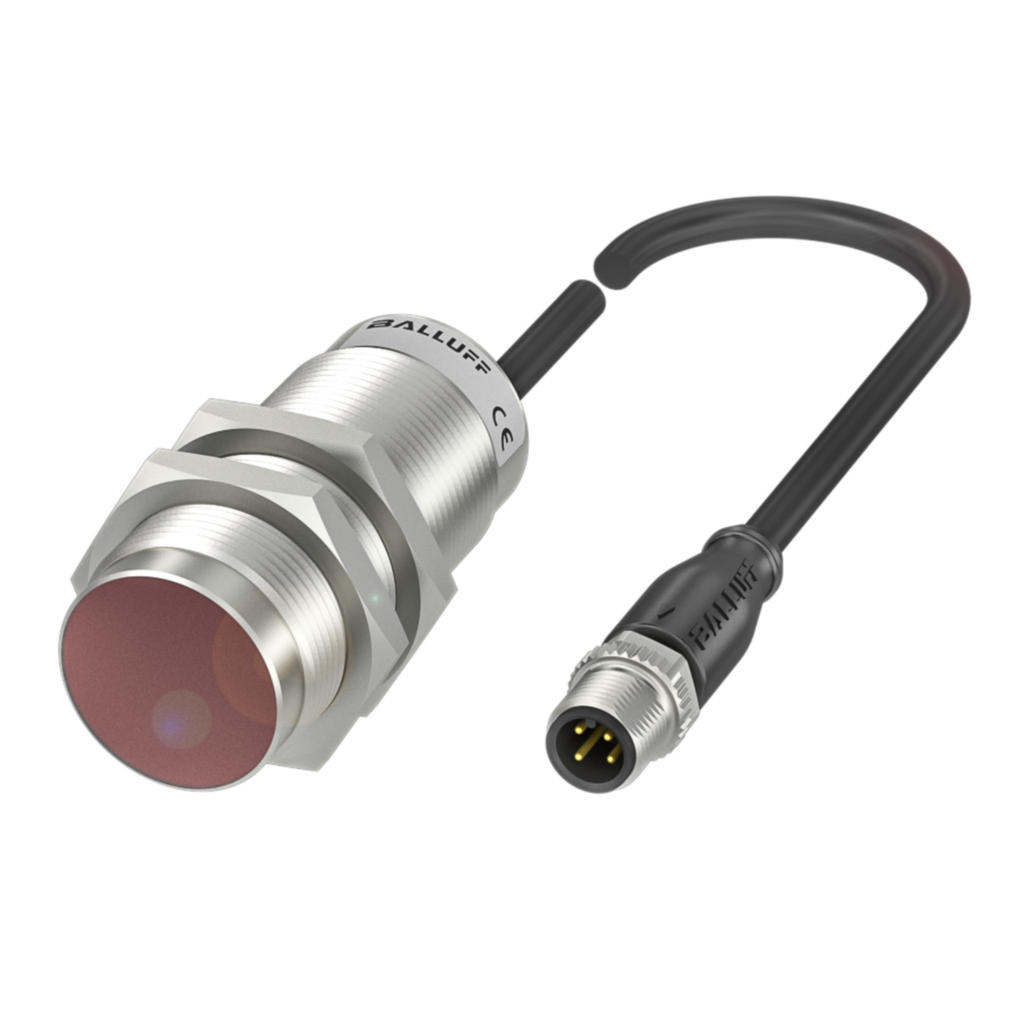

[BAE011L] BALLUFF BAE LX-VS-SR030A (new)
Iluminación de visión, Conexión = Cable con conector, M12x1-Conector, 4-polos, 0.3 m, Versión = Iluminación de punto, Dimensiones = Ø 30 x 67.5 mm, Tensión asignada de servicio Ue CC = 24 V, Consumo de corriente máx. = 300 mA, Operating Mode = Normal (continuous operation), Boost (continuous operation with cooling), Entradas digitales = Disparador, Material = Acero fino (1.4301) Latón PC, Superficie de iluminación = Ø 25 mm, Tipo de luz = LED de luz roja, Longitud de onda = 625 nm, Iluminancia (0,1 m) = 1100 Lux 190000 Lux (Boost mode), Ángulo de irradiación = 10 °, Temperatura ambiente = -10...50 °C, Homologación/conformidad = CE, UKCA, WEEE, Grado de protección = IP67
| Brand/Manufacturer: | BALLUFF |
| Status: |
Active
|
MONTERREY
0.0
SALTILLO
0.0
0.0 available
Technical Information
Viewing illumination, Connection = Cable with connector, M12x1-Connector, 4-pole, 0.3 m, Version = Spot illumination, Dimensions = Ø 30 x 67.5 mm, Assigned operating voltage Eu DC = 24 V, Max. current consumption = 300 mA, Operating Mode = Normal (continuous operation), Boost (continuous operation with cooling), Digital inputs = Trigger, Material = Stainless steel (1.4301) Brass PC, Lighting surface = Ø 25 mm, Light type = red light LED, Wavelength = 625 nm, Illuminance (0.1 m) = 1100 Lux 190000 Lux (Boost mode), Irradiation angle = 10 °, Ambient temperature = -10...50 °C, Approval/conformity = CE, UKCA, WEEE, Degree of protection = IP67
