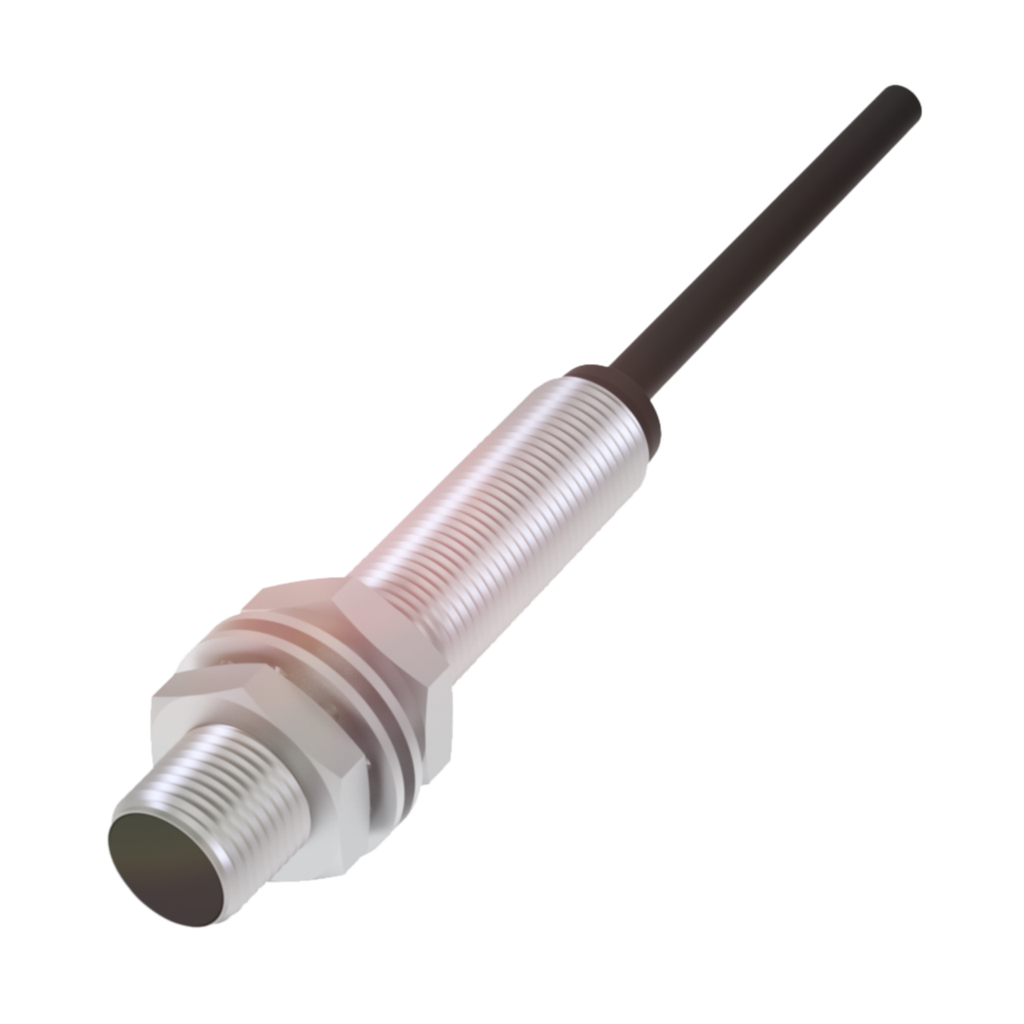

[BAW0051] BALLUFF BAW M12MN-ICC35C-BP02 (new)
Sensor de distancia inductivo, Dimensiones = Ø 12 x 63 mm, Forma constructiva = M12x1, Montaje = flush, Alcance = 0.2...3.5 mm, Salida analógica = Corriente analógica 4...20 mA, Característica de salida = Decreciente a aproximación, Frecuencia límite –3 dB = 1000 Hz, Repetibilidad según BWN = ±7 µm, Desviación máxima en la linealidad = ±53 µm, Material de carcasa = Latón, Recubierto sin níquel, Superficie activa, material = PBT, Conexión = Cable, 2.00 m, PUR, Tensión de servicio Ub = 16...30 VDC, Temperatura ambiente = -40...80 °C, Grado de protección = IP68, Homologación/conformidad = CE, UKCA, cULus, WEEE
| Brand/Manufacturer: | BALLUFF |
| Status: |
Active
|
MONTERREY
0.0
SALTILLO
0.0
0.0 available
Technical Information
Inductive distance sensor, Dimensions = Ø 12 x 63 mm, Constructive form = M12x1, Mounting = flush, Range = 0.2...3.5 mm, Analog output = Analog current 4...20 mA, Output characteristic = Decreasing to approach, Limit frequency –3 dB = 1000 Hz, Repeatability according to BWN = ±7 μm, Maximum deviation in linearity = ±53 μm, Housing material = Brass, Nickel-free coated, Active surface, material = PBT, Connection = Cable, 2.00 m, PUR, Operating voltage Ub = 16...30 VDC, Ambient temperature = -40...80 °C, Degree of protection = IP68, Approval/conformity = CE, UKCA, cULus, WEEE
