BALLUFF BAW Z15E-ICC70G-S04G (New)

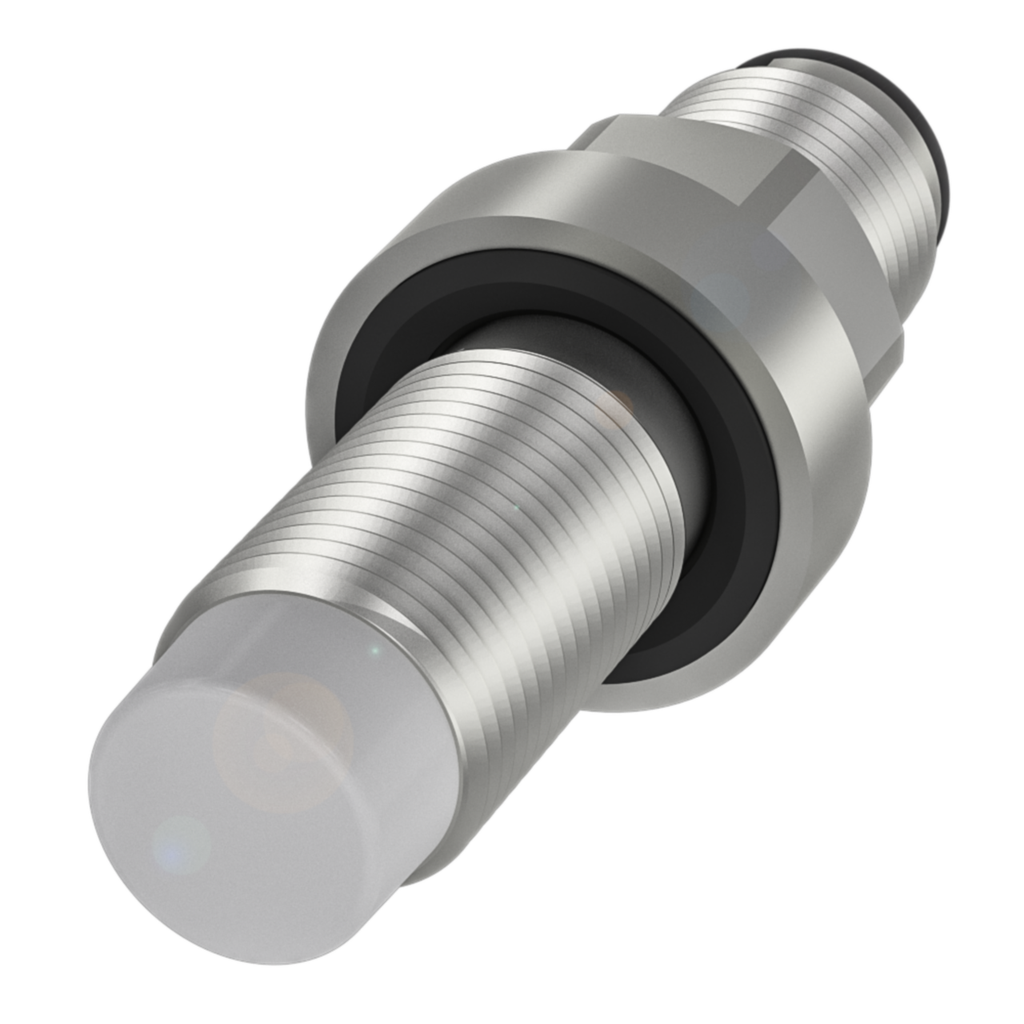

[BAW006E] BALLUFF BAW Z15E-ICC70G-S04G (New) - BALLUFF

https://www.grupomi.com/web/image/product.template/715029/image_1920?unique=251ba30
Sensor de distancia inductivo, Dimensiones = Ø 12 x 50 mm, Forma constructiva = M12x1, Montaje = No enrasado, Alcance = 0.2...7 mm, Salida analógica = Corriente analógica 4...20 mA, Característica de salida = Decreciente a aproximación, Frecuencia límite –3 dB = 1000 Hz, Repetibilidad según BWN = ±7.0 µm, Desviación máxima en la linealidad = ±70 µm, Material de carcasa = Acero fino (1.4104), Superficie activa, material = LCP, Conexión = Conector, M12x1-Conector, 3-polos, Tensión de servicio Ub = 16...30 VDC, Temperatura ambiente = -40...80 °C, Grado de protección = IP68, Homologación/conformidad = CE, UKCA, cULus, WEEE
Brand/Manufacturer: BALLUFF
Status: Descontinuado

This combination does not exist.

Agotado
Correo electrónico no válido
Le enviaremos una notificación cuando el producto vuelva a estar disponible.
Contact Us
MONTERREY
0.0
SALTILLO
0.0
0.0 available

Terms and Conditions
Garantía de 6 meses
Envío: 1-2 días laborales

Share

Inductive distance sensor, Dimensions = Ø 12 x 50 mm, Constructive form = M12x1, Mounting = Not flush, Range = 0.2...7 mm, Analog output = Analog current 4...20 mA, Output characteristic = Decreasing at approach, Limit frequency –3 dB = 1000 Hz, Repeatability according to BWN = ±7.0 μm, Maximum deviation in linearity = ±70 μm, Housing material = Stainless steel (1.4104), Active surface, Material = LCP, Connection = Connector, M12x1-Connector, 3-pole, Operating voltage Ub = 16...30 VDC, Ambient temperature = -40...80 °C, Degree of protection = IP68, Approval/conformity = CE, UKCA, cULus, WEEE
