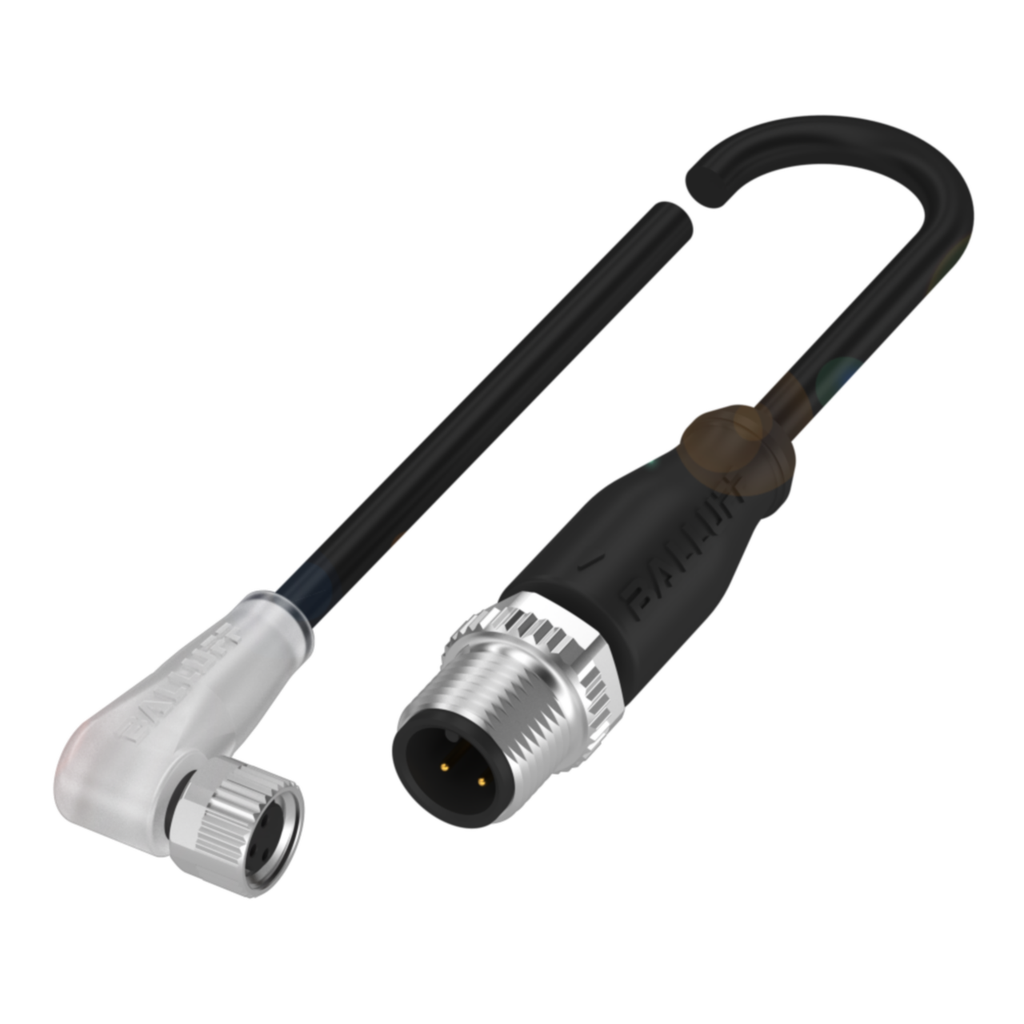

BALLUFF BCC M323-M413-3E-602-PX0334-035 (New)

[BCC0KYL] BALLUFF BCC M323-M413-3E-602-PX0334-035 (new)

https://www.grupomi.com/web/image/product.template/716802/image_1920?unique=881f604
Conector/cable conexión, Conexión 1 = M8x1-Conector hembra, acodado, 3-polos, A-codificado, Conexión 2 = M12x1-Conector, recto, 3-polos, A-codificado, Indicador de tensión de servicio = LED verde / no, Indicación de funcionamiento = Sí / no, Indicación de funcionamiento (Pin 4) = LED amarillo, Cable = PUR Negro, 3.5 m, Apto para cadenas de arrastre, Número de conductores = 3, Temperatura del cable, posicionamiento fijo = -50...90 °C, Temperatura del cable, posicionamiento flexible = -25...90 °C, Tensión de servicio Ub = 30 VDC, Corriente nominal (40 °C) = 4.0 A, Grado de protección = IP67, IP69K/IP67, IP68, IP69K, Homologación/conformidad = CE, cULus, WEEE
Brand/Manufacturer: BALLUFF
Status:
Active

USD 44.64 44.64 USD

SOLICITAR TIEMPO ENTREGA

This combination does not exist.

Contact Us
MONTERREY
0.0
SALTILLO
0.0
0.0 available

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Connector/cable connection, Connection 1 = M8x1-Female connector, angled, 3-pole, A-coded, Connection 2 = M12x1-Connector, straight, 3-pole, A-coded, Operating voltage indicator = Green LED / no, Operating indication = Yes / no, Operating indication (Pin 4) = Yellow LED, Cable = PUR Black, 3.5 m, Suitable for drag chains, Number of conductors = 3, Cable temperature, fixed positioning = -50...90 °C, Cable temperature, flexible positioning = -25...90 °C, Operating voltage Ub = 30 VDC, Rated current (40 °C) = 4.0 A, Degree of protection = IP67, IP69K/IP67, IP68, IP69K, Approval/conformity = CE, cULus, WEEE
