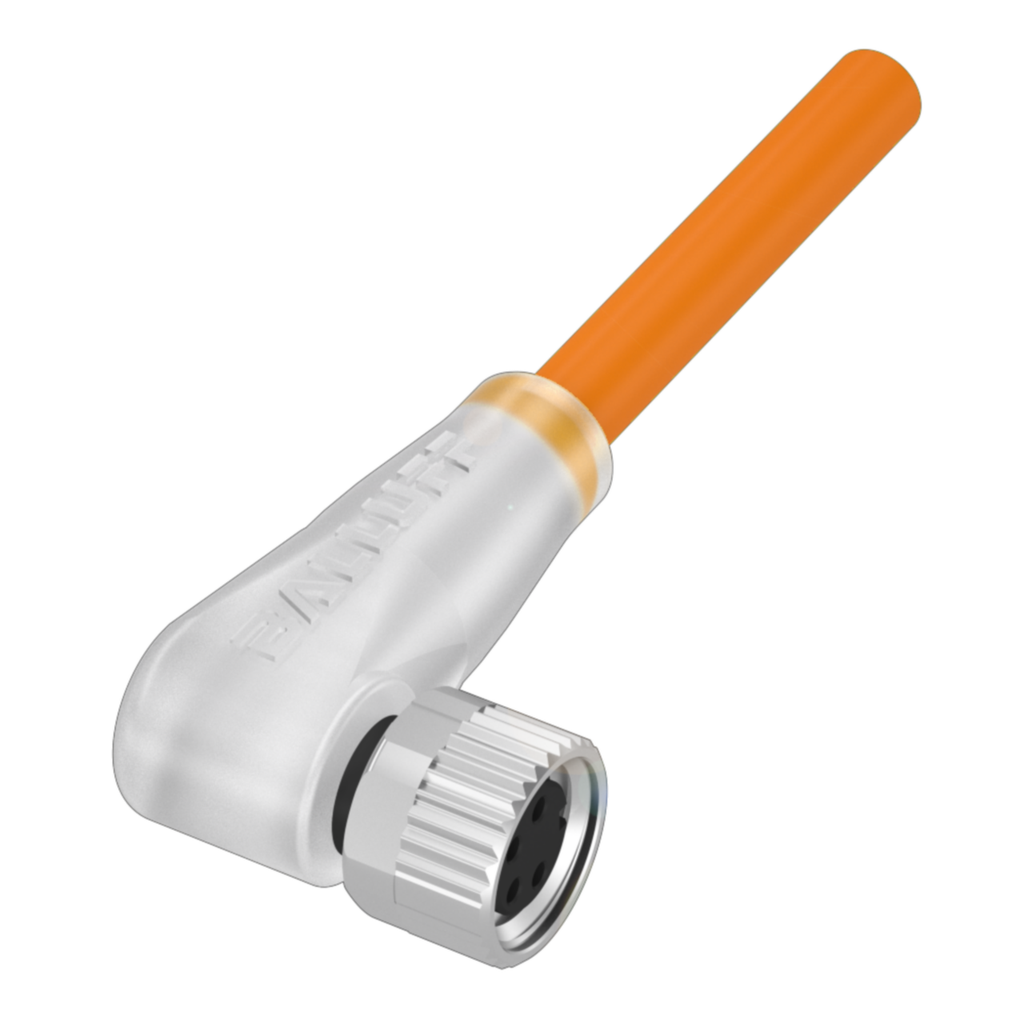

BALLUFF BCC M324-0000-10-008-PW3434-050 (New)

[BCC0L4W] BALLUFF BCC M324-0000-10-008-PW3434-050 (new)

https://www.grupomi.com/web/image/product.template/716899/image_1920?unique=881f604
Conector/cable conexión, Conexión = M8x1-Casquillo, acodado, 4-polos, A-codificado, Indicador de tensión de servicio = LED verde, Indicación de funcionamiento (Pin 4) = LED amarillo, Salida de conmutación = PNP contacto normalmente abierto (NA), Cable = PUR resistente a chispas de soldadura Naranja, 5 m, Apto para cadenas de arrastre, Número de conductores = 4, sección de conductor = 0.34 mm², Temperatura del cable, posicionamiento fijo = -50...90 °C, Temperatura del cable, posicionamiento flexible = -25...90 °C, Tensión de servicio Ub = 30 VDC, Corriente nominal (40 °C) = 4.0 A, Grado de protección = IP67, IP69K, Homologación/conformidad = CE, cULus, WEEE
Brand/Manufacturer: BALLUFF
Status:
Active

USD 49.81 49.81 USD

SOLICITAR TIEMPO ENTREGA

This combination does not exist.

Contact Us
MONTERREY
0.0
SALTILLO
0.0
0.0 available

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Connector/cable connection, Connection = M8x1-Socket, angled, 4-pole, A-coded, Operating voltage indicator = green LED, Operating indication (Pin 4) = yellow LED, Switching output = PNP normally open contact (NO), Cable = Spark resistant PUR Orange, 5 m, Suitable for drag chains, Number of conductors = 4, conductor section = 0.34 mm², Cable temperature, Fixed positioning = -50...90 °C, Cable temperature, Flexible positioning = -25...90 °C, Operating voltage Ub = 30 VDC, Rated current (40 °C) = 4.0 A, Degree of protection = IP67, IP69K, Approval/conformity = CE, cULus, WEEE
