BALLUFF BCC M324-0000-10-010-PW0434-080 (New)

[BCC0NMP] BALLUFF BCC M324-0000-10-010-PW0434-080 (new)

https://www.grupomi.com/web/image/product.template/716920/image_1920?unique=881f604

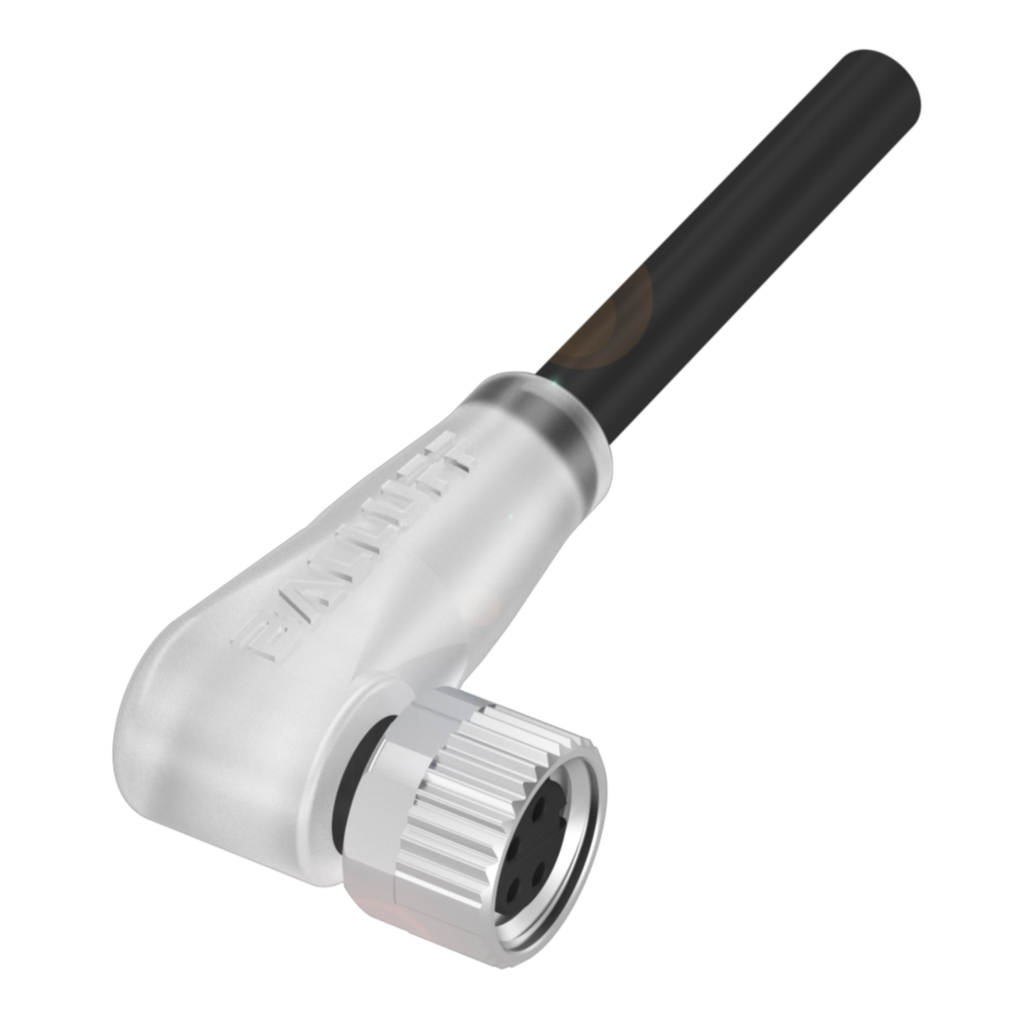

Conector/cable conexión, Conexión = M8x1-Casquillo, acodado, 4-polos, A-codificado, Indicador de tensión de servicio = LED verde, Indicación de funcionamiento = Sí, Indicación de funcionamiento (PIN 2) = LED blanco, Indicación de funcionamiento (Pin 4) = LED amarillo, Salida de conmutación = PNP contacto NA/NC (NA/NC) Antivalente, Cable = PUR resistente a chispas de soldadura Negro, 8 m, Apto para cadenas de arrastre, Número de conductores = 4, sección de conductor = 0.34 mm², Temperatura del cable, posicionamiento fijo = -50...90 °C, Temperatura del cable, posicionamiento flexible = -25...90 °C, Tensión de servicio Ub = 30 VDC, Corriente nominal (40 °C) = 4.0 A, Grado de protección = IP67, IP69K, Homologación/conformidad = CE, UKCA, cULus, WEEE
Brand/Manufacturer: BALLUFF
Status:
Active

This combination does not exist.

Contact Us
MONTERREY
0.0
SALTILLO
0.0
0.0 available

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Connector/connection cable, Connection = M8x1-Socket, angled, 4-pole, A-coded, Operating voltage indicator = green LED, Operating indication = Yes, Operating indication (PIN 2) = white LED, Operating indication (Pin 4) = yellow LED, Switching output = PNP NA/NC CONTACT (NA/NC) Antivalent, Cable = spark resistant PUR Black, 8 m, Suitable for drag chains, Number of conductors = 4, conductor cross-section = 0.34 mm², Cable temperature, fixed positioning = -50...90 °C, Cable temperature, flexible positioning = -25...90 °C, Operating voltage Ub = 30 VDC, Rated current (40 °C) = 4.0 A, Degree of protection = IP67, IP69K, Approval/conformity = CE, UKCA, cULus, WEEE
