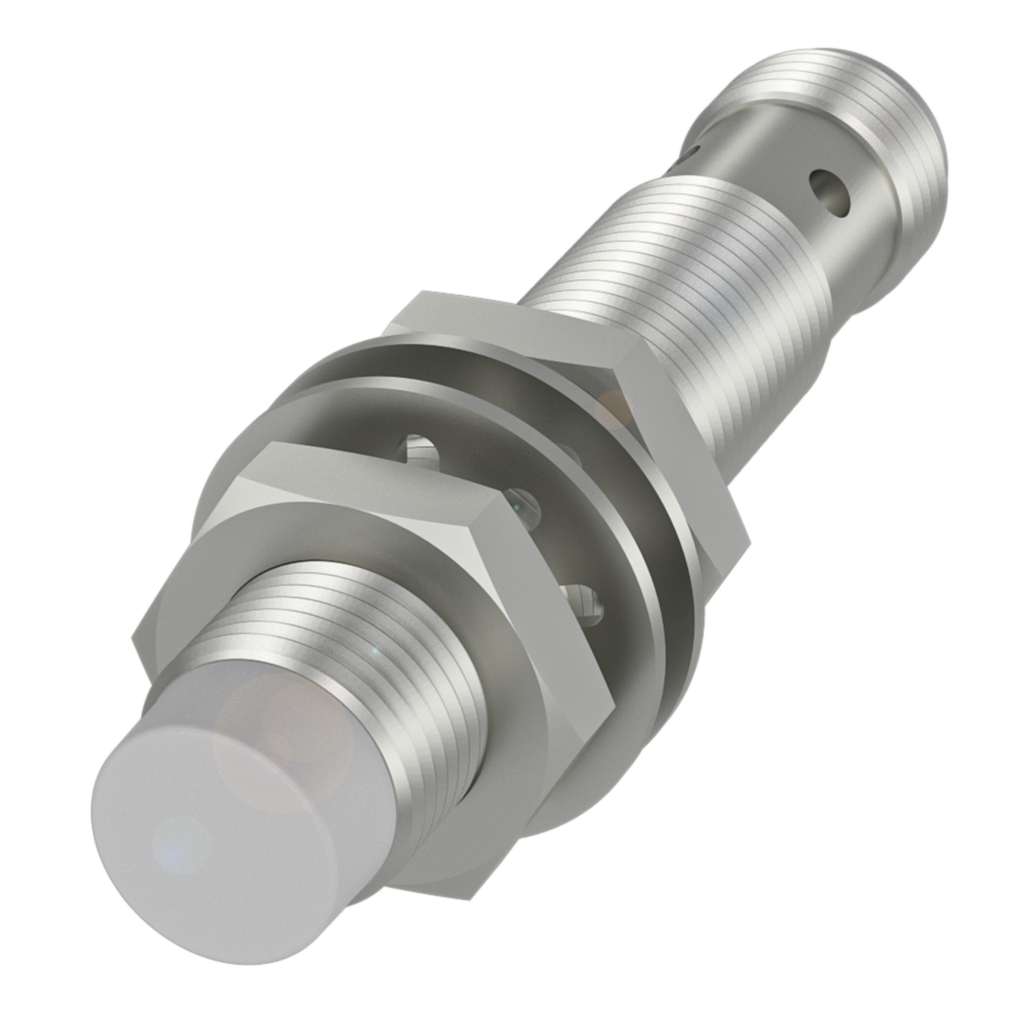

[BAW003N] BALLUFF BAW M12MH1-ICC40F-S04G (new)
Sensor de distancia inductivo, Dimensiones = Ø 12 x 65 mm, Forma constructiva = M12x1, Montaje = No enrasado, Alcance = 1...4 mm, Salida analógica = Corriente analógica 4...20 mA, Característica de salida = Decreciente a aproximación, Frecuencia límite –3 dB = 500 Hz, Repetibilidad según BWN = ±8 µm, Desviación máxima en la linealidad = ±120 µm, Material de carcasa = Latón, niquelada, Superficie activa, material = PBT, Conexión = Conector, M12x1-Conector, 3-polos, Tensión de servicio Ub = 10...30 VDC, Temperatura ambiente = -10...70 °C, Grado de protección = IP67, Homologación/conformidad = CE, UKCA, cULus, WEEE
| Marca/Fabricante: | BALLUFF |
| Estatus: |
Activo
|
MONTERREY
0.0
SALTILLO
0.0
0.0 en existencia
Información Técnica
Inductive distance sensor, Dimensions = Ø 12 x 65 mm, Constructive form = M12x1, Mounting = Not flush, Range = 1...4 mm, Analog output = Analog current 4...20 mA, Output characteristic = Decreasing to approach, Limit frequency –3 dB = 500 Hz, Repeatability according to BWN = ±8 μm, Maximum deviation in linearity = ±120 μm, Housing material = Brass, nickel-plated, Active surface, Material = PBT, Connection = Connector, M12x1-Connector, 3-pole, Operating voltage Ub = 10...30 VDC, Ambient temperature = -10...70 °C, Degree of protection = IP67, Approval/conformity = CE, UKCA, cULus, WEEE
