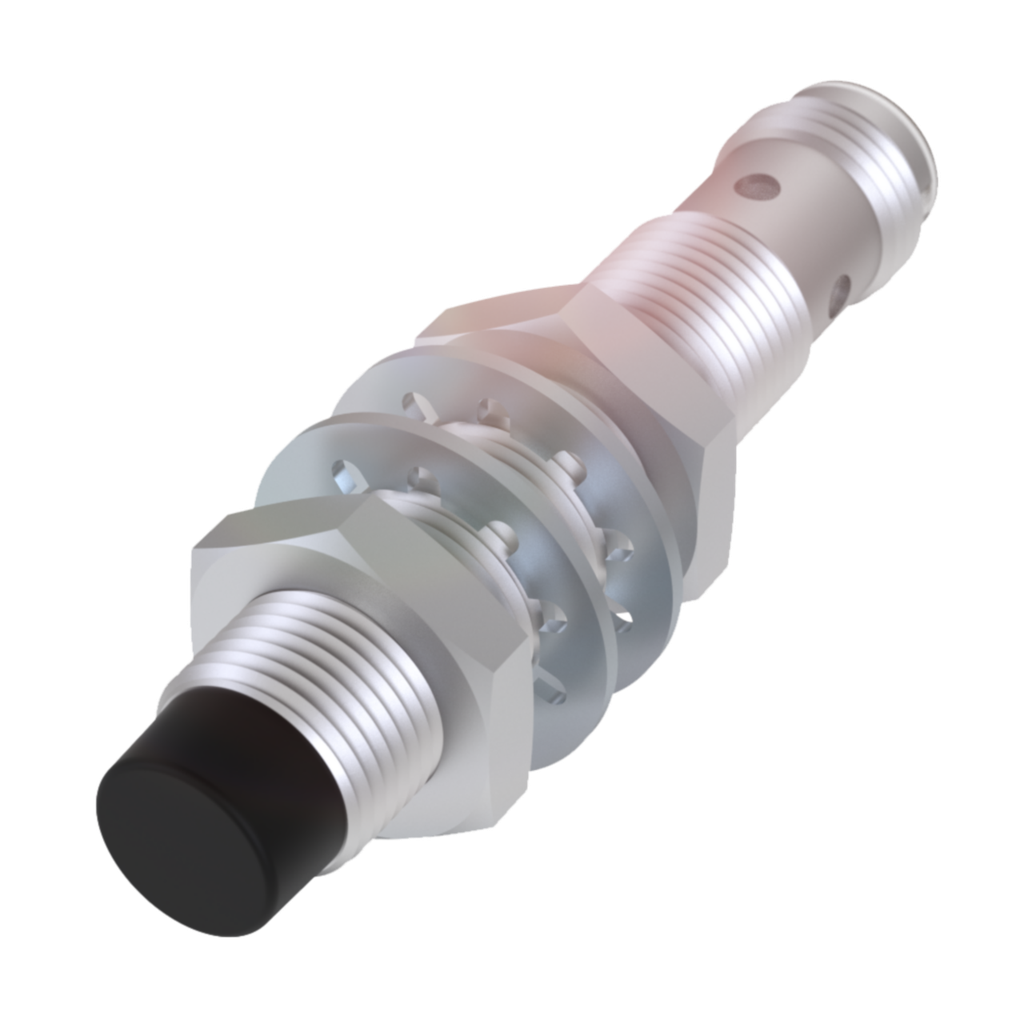

[BAW0056] BALLUFF BAW M12MH-BLC70G-S04G (new)

https://www.grupomi.com/web/image/product.template/714985/image_1920?unique=96975f2
Sensor de distancia inductivo, Dimensiones = Ø 12 x 65 mm, Forma constructiva = M12x1, Montaje = No enrasado, Alcance = 0.2...7 mm, Interfaz = IO-Link 1.1 12 bit, Característica de salida = Decreciente a aproximación, Frecuencia límite –3 dB = 1000 Hz, Repetibilidad según BWN = ±14 µm, Desviación máxima en la linealidad = ±70 µm, Material de carcasa = Latón, Recubierto sin níquel, Superficie activa, material = LCP, Conexión = Conector, M12x1-Conector, 4-polos, Tensión de servicio Ub = 18...30 VDC, Temperatura ambiente = -40...80 °C, Grado de protección = IP67, Homologación/conformidad = CE, UKCA, cULus, WEEE
Marca/Fabricante: BALLUFF
Estatus:
Activo

USD 360.39 360.39 USD

Esta combinación no existe.

MONTERREY
0.0
SALTILLO
0.0
0.0 en existencia

Términos y condiciones
Garantía de devolución de 30 días
Envío: 2-3 días laborales

Inductive distance sensor, Dimensions = Ø 12 x 65 mm, Construction form = M12x1, Mounting = Not flush, Range = 0.2...7 mm, Interface = IO-Link 1.1 12 bit, Output characteristic = Decreasing to approach, Limit frequency –3 dB = 1000 Hz, Repeatability according to BWN = ±14 μm, Maximum deviation in linearity = ±70 μm, Housing material = Brass, Nickel-free coated, Active surface, Material = LCP, Connection = Connector, M12x1-Connector, 4-pole, Operating voltage Ub = 18...30 VDC, Ambient temperature = -40...80 °C, Degree of protection = IP67, Approval/conformity = CE, UKCA, cULus, WEEE
