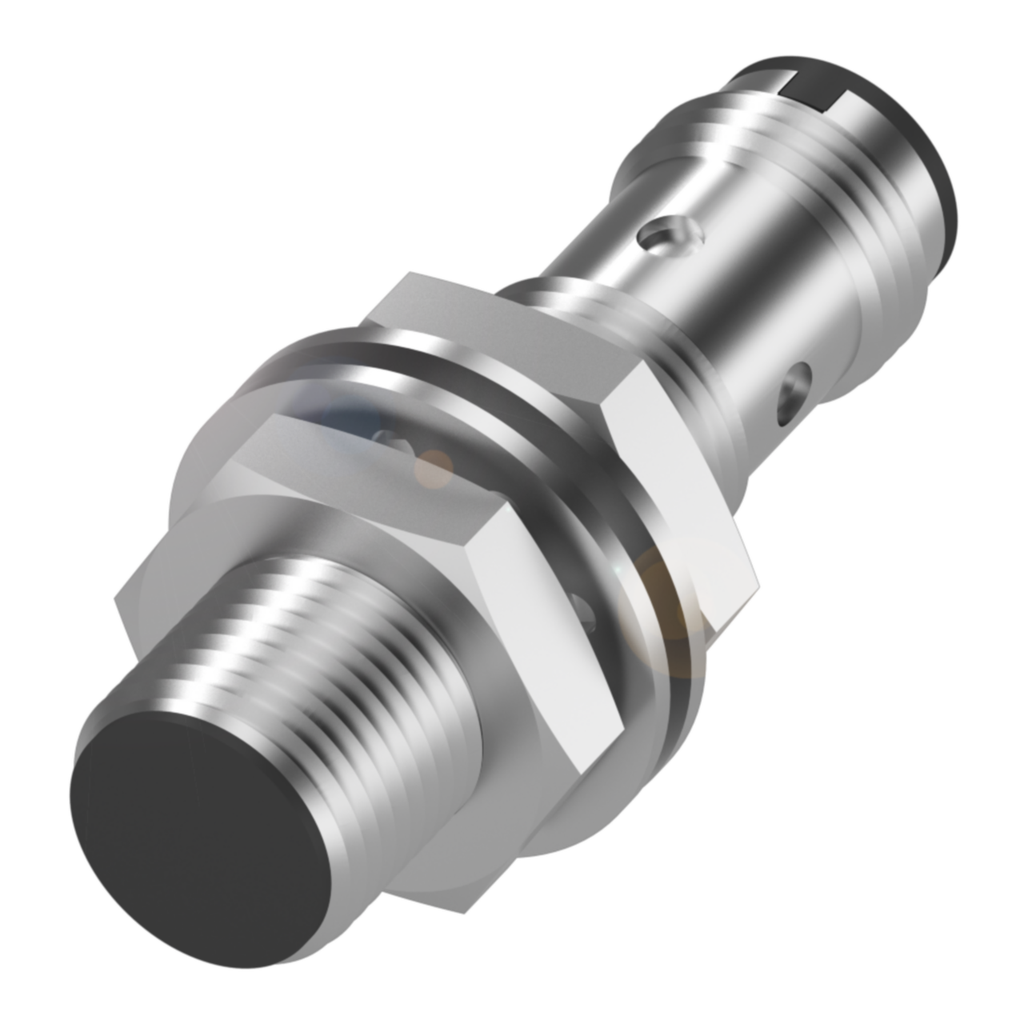

[BAW006H] BALLUFF BAW M12ME-UAC20C-S04G (new)
Sensor de distancia inductivo, Dimensiones = Ø 12 x 45 mm, Forma constructiva = M12x1, Montaje = flush, Alcance = 0.5...2 mm, Salida analógica = Analógica, tensión 0...10 V, Característica de salida = Decreciente a aproximación, Frecuencia límite –3 dB = 1000 Hz, Repetibilidad según BWN = ±7 µm, Desviación máxima en la linealidad = ±35 µm, Material de carcasa = Latón, Recubierto sin níquel, Superficie activa, material = PBT, Conexión = Conector, M12x1-Conector, 3-polos, Tensión de servicio Ub = 15...30 VDC, Temperatura ambiente = -40...80 °C, Grado de protección = IP67, Homologación/conformidad = CE, cULus, WEEE
| Marca/Fabricante: | BALLUFF |
| Estatus: |
Activo
|
MONTERREY
0.0
SALTILLO
0.0
0.0 en existencia
Información Técnica
Inductive distance sensor, Dimensions = Ø 12 x 45 mm, Constructive form = M12x1, Mounting = flush, Range = 0.5...2 mm, Analog output = Analog, voltage 0...10 V, Output characteristic = Decreasing to approach, Limit frequency –3 dB = 1000 Hz, Repeatability according to BWN = ±7 μm, Maximum deviation in linearity = ±35 μm, Housing material = Brass, Nickel-free coated, Active surface, Material = PBT, Connection = Connector, M12x1-Connector, 3-pole, Operating voltage Ub = 15...30 VDC, Ambient temperature = -40...80 °C, Degree of protection = IP67, Approval/conformity = CE, cULus, WEEE
