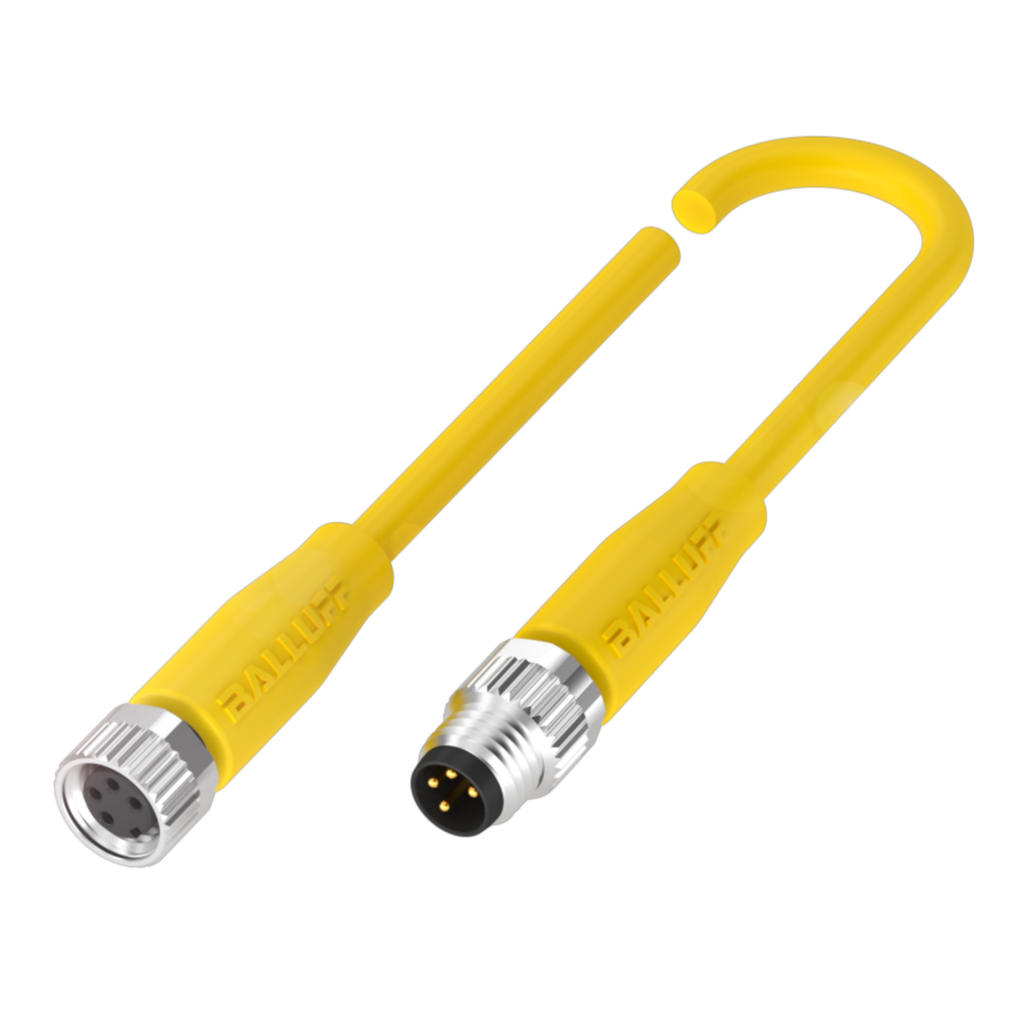

[BCC054E] BALLUFF BCC M314-M314-30-304-VX44T2-010 (new)
Conector/cable conexión, Conexión 1 = M8x1-Conector hembra, recto, 4-polos, A-codificado, Conexión 2 = M8x1-Conector, recto, 4-polos, A-codificado, Cable = PVC Amarillo, 1 m, Número de conductores = 4, Temperatura del cable, posicionamiento fijo = -40...105 °C, Temperatura del cable, posicionamiento flexible = -5...105 °C, Tensión de servicio Ub = 60 VDC / 60 VAC, Corriente nominal (40 °C) = 4.0 A, Grado de protección = IP67, IP69K/IP67, IP69K, Homologación/conformidad = CE, cULus, WEEE
Marca/Fabricante: | BALLUFF |
Estatus: |
Activo
|
MONTERREY
0.0
SALTILLO
0.0
0.0 en existencia
Información Técnica
Connector/cable connection, Connection 1 = M8x1-Female connector, straight, 4-pole, A-coded, Connection 2 = M8x1-Connector, straight, 4-pole, A-coded, Cable = PVC Yellow, 1 m, Number of conductors = 4, Cable temperature, fixed positioning = -40...105 °C, Cable temperature, flexible positioning = -5...105 °C, Operating voltage Ub = 60 VDC / 60 VAC, Rated current (40 °C) = 4.0 A, Degree of protection = IP67, IP69K/IP67, IP69K, Approval/Conformity = CE, cULus, WEEE
