Pricelist GRUPO MI
ABB (New)

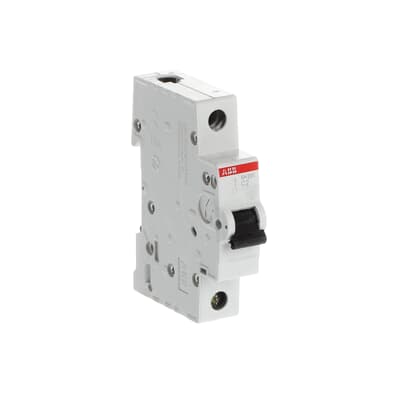

[2CDS211001R0024] ABB (New) - ABB

Standards:IEC/EN 60898-1
Tripping Characteristic:C
Rated Operational Voltage:acc. to IEC 60898-1 230 V
Operational Voltage:Maximum (Incl. Tolerance) 253 V AC
Minimum 12 V AC
Rated Insulation Voltage (Ui):acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp):4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Dielectric Test Voltage:50/60 Hz, 1 min: 2 kV
Input Voltage Type:AC
Rated Current (In):2 A
Rated Short-Circuit Capacity:(AC) 6 kA
(230 / 400 V AC) 6 kA
(230 V) 6 kA
Rated Conditional Short-Circuit Current (Inc):(230 V) 6 kA
(400 V) 6 kA
Rated Frequency (f):50 / 60 Hz

2CDS211001R0024 ABB https://www.grupomi.com/web/image/product.template/456872/image_1920?unique=1d10cbb

Standards:IEC/EN 60898-1 Tripping Characteristic:C Rated Operational Voltage:acc. to IEC 60898-1 230 V Operational Voltage:Maximum (Incl. Tolerance) 253 V AC Minimum 12 V AC Rated Insulation Voltage (Ui):acc. to IEC/EN 60664-1 440 V Rated Impulse Withstand Voltage (Uimp):4 kV at 2000 m 5 kV at Sea Level 6.2 kV Dielectric Test Voltage:50/60 Hz, 1 min: 2 kV Input Voltage Type:AC Rated Current (In):2 A Rated Short-Circuit Capacity:(AC) 6 kA (230 / 400 V AC) 6 kA (230 V) 6 kA Rated Conditional Short-Circuit Current (Inc):(230 V) 6 kA (400 V) 6 kA Rated Frequency (f):50 / 60 Hz
Brand/Manufacturer: ABB
Status: Activo
