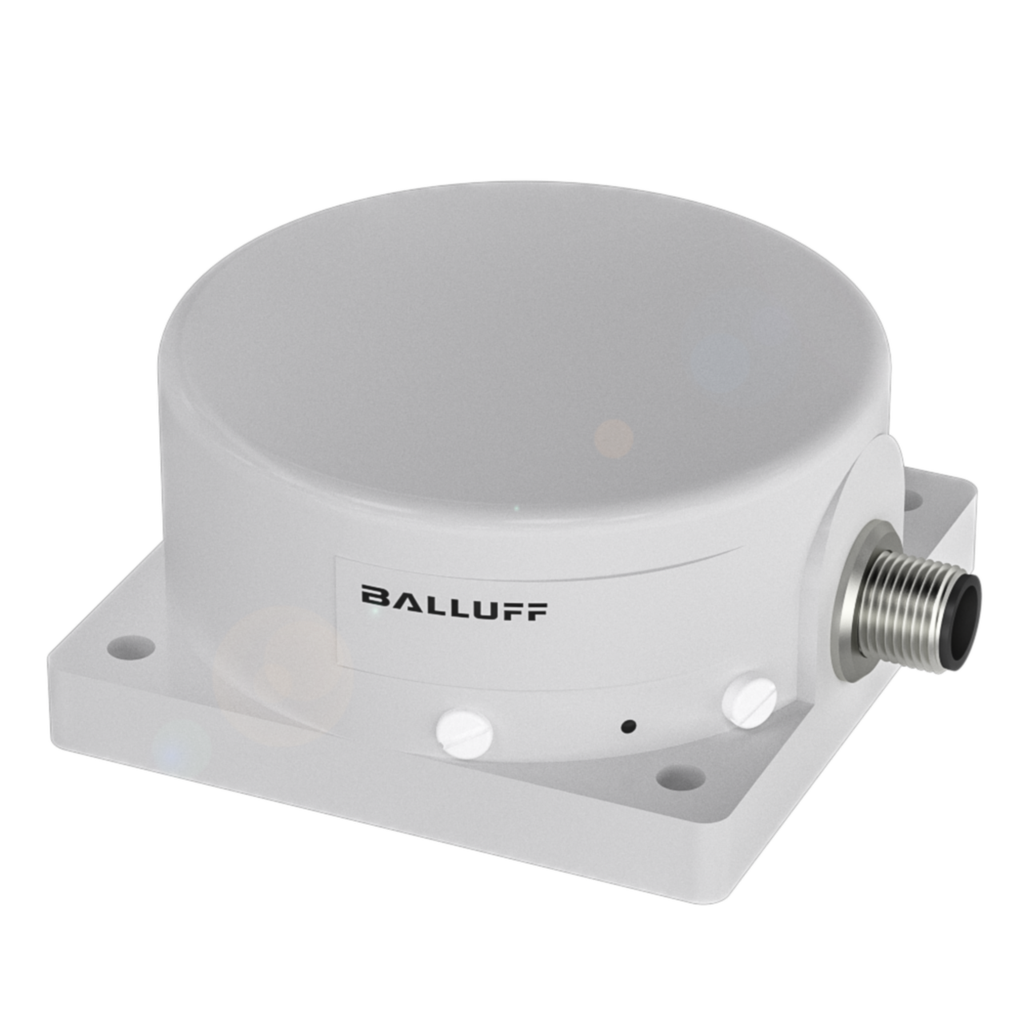

[BAW005J] BALLUFF BAW Q80KA-UAC50F-S4-504 (new)
Sensor de distancia inductivo, Dimensiones = 80 x 40 x 80 mm, Forma constructiva = cuadrangular, Montaje = No enrasado, Alcance = 0...50 mm, Salida analógica = Analógica, tensión 0...10 V, Característica de salida = Decreciente a aproximación, Frecuencia límite –3 dB = 15 Hz, Repetibilidad según BWN = ±12 µm, Desviación máxima en la linealidad = ±750 µm [15…35 mm]; ±1500 µm [5…15 mm, 35…45 mm]; ±2000 µm [0…5 mm, 45…50 mm], Material de carcasa = PBT, Superficie activa, material = PBT, Conexión = Conector, M12x1-Conector, 3-polos, Tensión de servicio Ub = 20...30 VDC, Temperatura ambiente = -10...70 °C, Grado de protección = IP67, Homologación/conformidad = CE, WEEE
| Marca/Fabricante: | BALLUFF |
| Estatus: |
Activo
|
MONTERREY
0.0
SALTILLO
0.0
0.0 en existencia
Información Técnica
Inductive distance sensor, Dimensions = 80 x 40 x 80 mm, Layout = quadrangular, Mounting = Non-flush, Range = 0...50 mm, Analogue output = Analogue, voltage 0...10 V, Output characteristic = Decreasing to approach, Limit frequency –3 dB = 15 Hz, Repeatability according to BWN = ±12 μm, Maximum deviation in linearity = ±750 μm [15... 35 mm]; ±1500 μm [5... 15 mm, 35... 45 mm]; ±2000 μm [0... 5 mm, 45... 50 mm], Housing material = PBT, Active surface, material = PBT, Connection = Connector, M12x1-Connector, 3-pole, Operating voltage Ub = 20...30 VDC, Ambient temperature = -10...70 °C, Degree of protection = IP67, Approval/conformity = CE, WEEE
