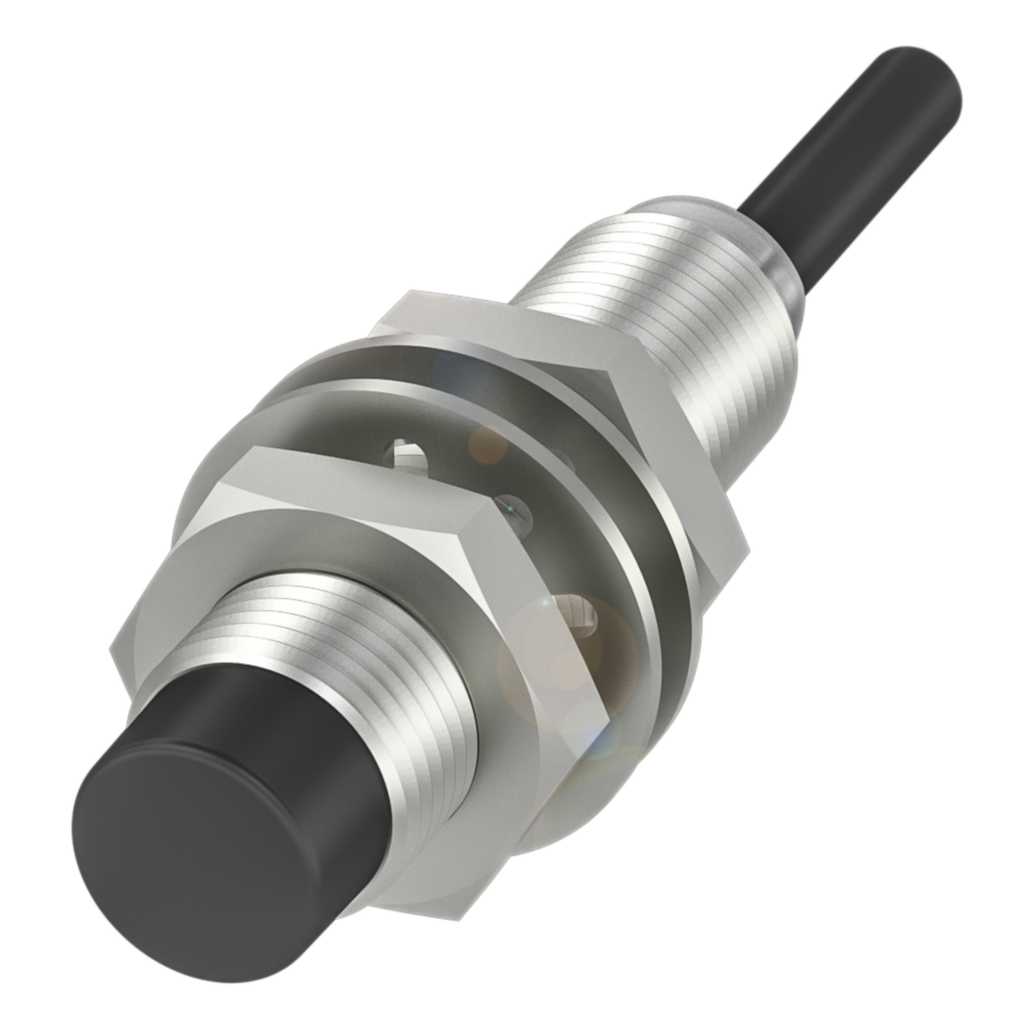

[BAW0068] BALLUFF BAW M12MG-IAC70G-BP02 (new)

https://www.grupomi.com/web/image/product.template/714982/image_1920?unique=96975f2
Sensor de distancia inductivo, Dimensiones = Ø 12 x 48 mm, Forma constructiva = M12x1, Montaje = No enrasado, Alcance = 0.2...7 mm, Salida analógica = Corriente analógica 0...20 mA, Característica de salida = Decreciente a aproximación, Frecuencia límite –3 dB = 1000 Hz, Repetibilidad según BWN = ±7 µm, Desviación máxima en la linealidad = ±70 µm, Material de carcasa = Latón, Recubierto sin níquel, Superficie activa, material = LCP, Conexión = Cable, 2.00 m, PUR, Tensión de servicio Ub = 16...30 VDC, Temperatura ambiente = -40...80 °C, Grado de protección = IP68, Homologación/conformidad = CE, UKCA, cULus, WEEE
Marca/Fabricante: BALLUFF
Estatus:
Activo

USD 352.92 352.92 USD

Esta combinación no existe.

MONTERREY
0.0
SALTILLO
0.0
0.0 en existencia

Términos y condiciones
Garantía de devolución de 30 días
Envío: 2-3 días laborales

Inductive distance sensor, Dimensions = Ø 12 x 48 mm, Construction form = M12x1, Mounting = Non-flush, Range = 0.2...7 mm, Analog output = Analog current 0...20 mA, Output characteristic = Decreasing to approach, Limit frequency –3 dB = 1000 Hz, Repeatability according to BWN = ±7 μm, Maximum deviation in linearity = ±70 μm, Housing material = Brass, Nickel-free coated, Active surface, material = LCP, Connection = Cable, 2.00 m, PUR, Operating voltage Ub = 16...30 VDC, Ambient temperature = -40...80 °C, Degree of protection = IP68, Approval/conformity = CE, UKCA, cULus, WEEE
