[BAW006F] BALLUFF BAW M12MN-IAC20C-BP00,2-GS04 (new)

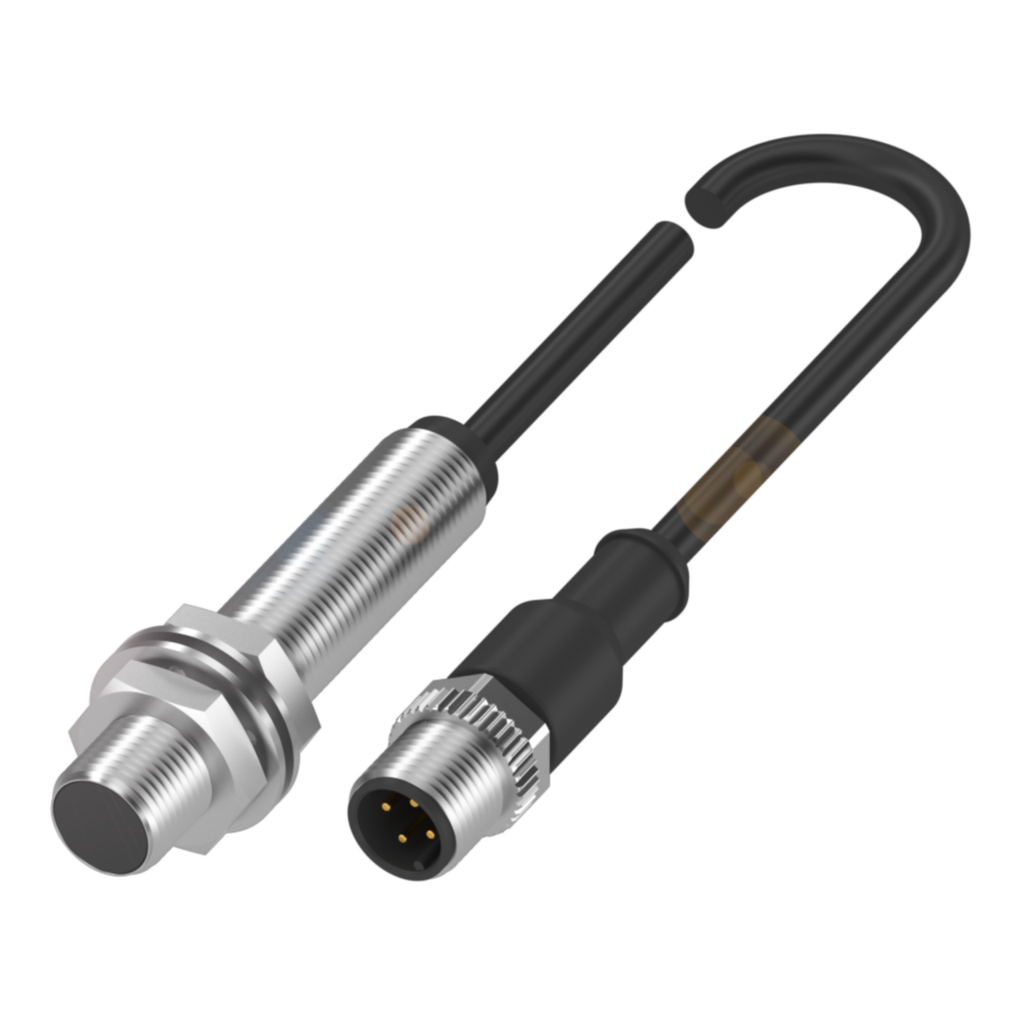

Sensor de distancia inductivo, Dimensiones = Ø 12 x 63 mm, Forma constructiva = M12x1, Montaje = flush, Alcance = 0.5...2 mm, Salida analógica = Corriente analógica 0...20 mA, Característica de salida = Decreciente a aproximación, Frecuencia límite –3 dB = 1000 Hz, Repetibilidad según BWN = ±7 µm, Desviación máxima en la linealidad = ±53 µm, Material de carcasa = Latón, Recubierto sin níquel, Superficie activa, material = PBT, Conexión = Cable con conector, M12x1-Conector, 4-polos, 0.20 m, PUR, Tensión de servicio Ub = 16...30 VDC, Temperatura ambiente = -40...80 °C, Grado de protección = IP68, Homologación/conformidad = CE, UKCA, cULus, WEEE
| Marca/Fabricante: | BALLUFF |
| Estatus: |
Activo
|
MONTERREY
0.0
SALTILLO
0.0
0.0 en existencia
Información Técnica
Inductive distance sensor, Dimensions = Ø 12 x 63 mm, Constructive form = M12x1, Mounting = flush, Range = 0.5...2 mm, Analog output = Analog current 0...20 mA, Output characteristic = Decreasing to approach, Limit frequency –3 dB = 1000 Hz, Repeatability according to BWN = ±7 μm, Maximum deviation in linearity = ±53 μm, Housing material = Brass, Nickel-free coated, Active surface, material = PBT, Connection = Cable with connector, M12x1-Connector, 4-pole, 0.20 m, PUR, Operating voltage Ub = 16...30 VDC, Ambient temperature = -40...80 °C, Degree of protection = IP68, Approval/conformity = CE, UKCA, cULus, WEEE
