Drive-based motion control system With expansion card PMCprimo C Standard bus system: CANopen, PROFIBUS, Software option: none, Technical data at 3 x 400 V AC: Continuous output current: 3 A, Imax (2 s)= 9 A, Imax (5 s)= 6 A, power consumption in S1 operation: 2.2 kVA, Integral brake resistor, CAN/CAN adapter included in delivery,

Part Number: 8176730

Piezas en stock - 0

Drive-based motion control system With expansion card PMCprimo C Standard bus system: CANopen, PROFIBUS Software option: none, Technical data at 3 x 400 V AC: Continuous output current: 6 A, Imax (2 s) = 18 A, Imax (5 s) = 12 A, Power consumption in S1 mode: 4.5 kVA Integral brake resistor, CAN/CAN adapter included in delivery,

Part Number: 8176725

Piezas en stock - 0

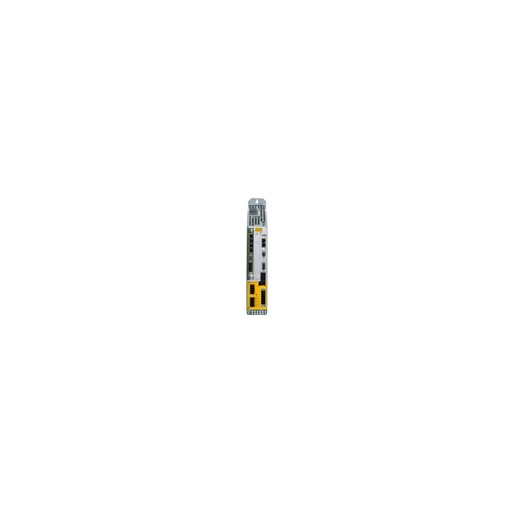

Drive-based motion control system With expansion card PMCprimo C2, Standard bus system: CANopen/CANopen set, Software option: IEC 61131-3 programming, EtherCat, Technical data at 3 x 400 V AC: Continuous output current: 3 A, Imax (2 s)= 9 A Imax (5 s)= 6 A, power consumption in S1 operation: 2.2 kVA, Integral brake resistor, CAN/CAN adapter included in delivery.

Part Number: 8176724

Piezas en stock - 0

Drive-based motion control system with expansion card PMCprimo C2, Standard bus system: Configurable CANopen/Profibus, Software option: Dynamic curve calulation, Technical data at 3 x 400 V AC: Continuous output current: 12 A, Imax (5 s)= 24 A, power consumption in S1 operation: 9 kVA, Integral brake resistor and mains filter, CAN/CAN adapter included in delivery,

Part Number: 8176723

Piezas en stock - 0

Drive-based motion control system With expansion card PMCprimo C2, Standard bus system: Configurable CANopen/ Profibus, Software option: Dynamic curve calculation, Technical data at 3 x 400 V AC: Continuous output current: 3 A, Imax (2 s)= 9 A Imax (5 s)= 6 A, power consumption in S1 operation: 2.2 kVA, Integral brake resistor, CAN/CAN adapter included in delivery,

Part Number: 8176722

Piezas en stock - 0

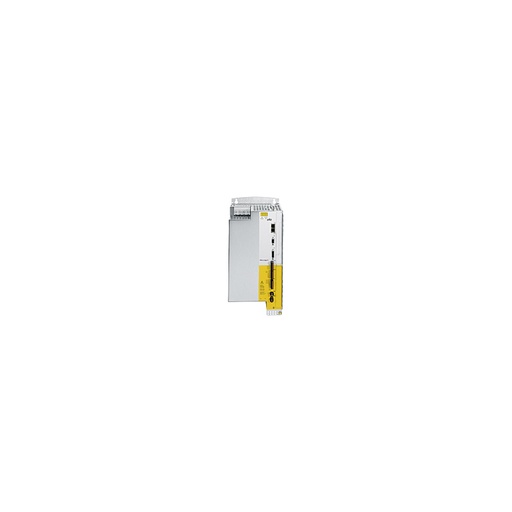

Technical Details at 3 x 400 V AC supply voltage: Permanent output current: 72 A, Imax (5 sec.) = 140 A, Power consumption in S1 operation: 50 kVA necessary accessories: brake resistor 10 OHM Additonal options: -Fan controller, card in Slot 2

Part Number: 8176687

Piezas en stock - 0

suitable for the device series PMCprotegoD 01-24 consisting of: Connector X3A, X3B, X4A, X4B Connector X0, X8.

Part Number: 8176674

Piezas en stock - 0

suitable for the device series PMCtendo DD5/230-480V consisting of: Connector X3, X4 Connector X0, X8, X9.

Part Number: 8176673

Piezas en stock - 0

Technical data at 3 x 400 V AC: Continuous output current: 6 A, Imax (2 s) = 18 A, Imax (5 s) = 12 A, Power consumption in S1 mode: 4.5 kVA Integral brake resistor Further hardware options: Expansion card PROFINET.

Part Number: 8176639

Piezas en stock - 0

Technical Details at 3 x 400 V AC supply voltage: Permanent output current: 24 A, Imax (5 sec.) = 48 A, Power consumption in S1 operation: 18 kVA Internal brake resistor and mains filter Additonal options: -Fan controller, card in Slot 2 -Expansion Card PMCprotego S1-2-C, card in Slot 3

Part Number: 8176638

Piezas en stock - 0

Technical Details at 3 x 400 V AC supply voltage: Permanent output current: 24 A, Imax (5 sec.) = 48 A, Power consumption in S1 operation: 18 kVA Internal brake resistor and mains filter Additonal options: -Fan controller, card in Slot 2

Part Number: 8176637

Piezas en stock - 0

Technical Details at 3 x 400 V AC supply voltage: Permanent output current: 24 A, Imax (5 sec.) = 48 A, Power consumption in S1 operation: 18 kVA Internal brake resistor and mains filter additional hardware option: Expansion Card PMCprotego S1-2 Expansion Card Profibus DP Slave

Part Number: 8176622

Piezas en stock - 0

Technical data at 3 x 400 V AC: Continuous output current: 24 A, Imax (5 s) = 48 A, Power consumption in S1 mode: 18 kVA Integral brake resistor. Further hardware options: Expansion card PMCprotego S1-2.

Part Number: 8176621

Piezas en stock - 0

Technical data at 3 x 400 V AC: Continuous output current: 24 A, Imax (5 s) = 48 A, Power consumption in S1 mode: 18 kVA Integral brake resistor Further hardware options: Expansion card PosI/O-AIO & PMCprotego S1-2.

Part Number: 8176620

Piezas en stock - 0

Technical data at 3 x 400 V AC: Continuous output current: 12 A, Imax (5 s) = 24 A, Power consumption in S1 mode: 9 kVA Integral brake resistor Further hardware options: Expansion card PMCprotego S2-2.

Part Number: 8176617

Piezas en stock - 0

Technical data at 3 x 400 V AC: Continuous output current: 12 A, Imax (5 s) = 24 A, Power consumption in S1 mode: 9 kVA Integral brake resistor Further hardware options: Expansion card PMCprotego S1-2.

Part Number: 8176616

Piezas en stock - 0

Technical data at 3 x 400 V AC: Continuous output current: 12 A, Imax (5 s) = 24 A, Power consumption in S1 mode: 9 kVA Integral brake resistor Further hardware options: Expansion card PosI/O-AIO & PMCprotego S1-2.

Part Number: 8176615

Piezas en stock - 0

Technical Details at 3 x 400 V AC supply voltage: Permanent output current: 6 A, Imax (2 sec.) = 18 A, Imax (5 sec.) = 12 A, Power consumption in S1 operation: 4,5 kVA Internal brake resistor and mains filter additional hardware option: Expansion Card Profibus DP Slave and PMCprotego S1-2

Part Number: 8176614

Piezas en stock - 0

Technical data at 3 x 400 V AC: Continuous output current: 6 A, Imax (2 s) = 18 A, Imax (5 s) = 12 A, Power consumption in S1 mode: 4.5 kVA Integral brake resistor Further hardware options: Expansion card PosI/O-AIO & PMCprotego S1-2.

Part Number: 8176612

Piezas en stock - 0

Technical data at 3 x 400 V AC: Continuous output current: 6 A, Imax (2 s) = 18 A, Imax (5 s) = 12 A, Power consumption in S1 mode: 4.5 kVA Integral brake resistor Further hardware options: Expansion card PMCprotego S2-2.

Part Number: 8176611

Piezas en stock - 0
